Product Description:

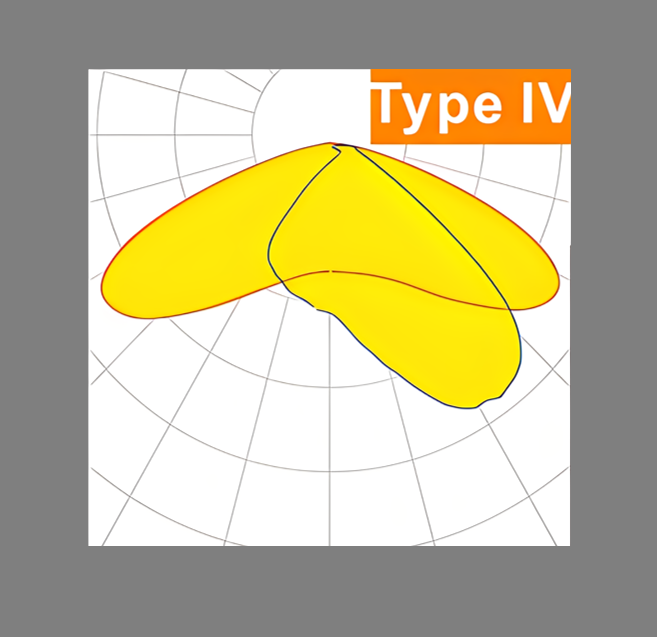

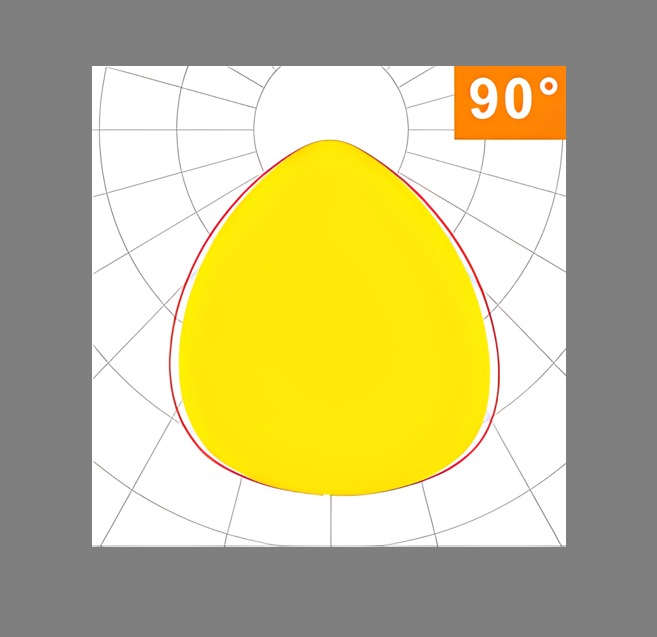

Durable design with die-cast housing and tempered glass. Features 6KV surge protection, anti-UV lens, and a smooth, streamlined design to prevent dust and water buildup while minimizing light loss. Application, Light distribution options vary by product: •Symmetric light is suitable for squares, plazas, and open areas. •Asymmetric light is ideal for streets and pathways.

Technical Specifications

Electrical:
30W, 40W, 60W, 90W, 100–277V, 50/60Hz.
Driver:
Upon customer request, >93% efficiency, PF>0.95, THD<15%, OTP/OCP/OVP/SCP, PWM, DALI, 0/1–10V dimming.
Protection:
6KV, IP66, IK08.
LED Configurations:
CCT 3000 – 4000 – 6500 K, CRI>70, SDCM<6
Housing:
Die-cast aluminium, tempered glass, and anti-UV lens
Lifetime:
L90B10 >50,000h.
Ordering Variations:
Finish Product, Full SKD, Full CKD or just Housing.
